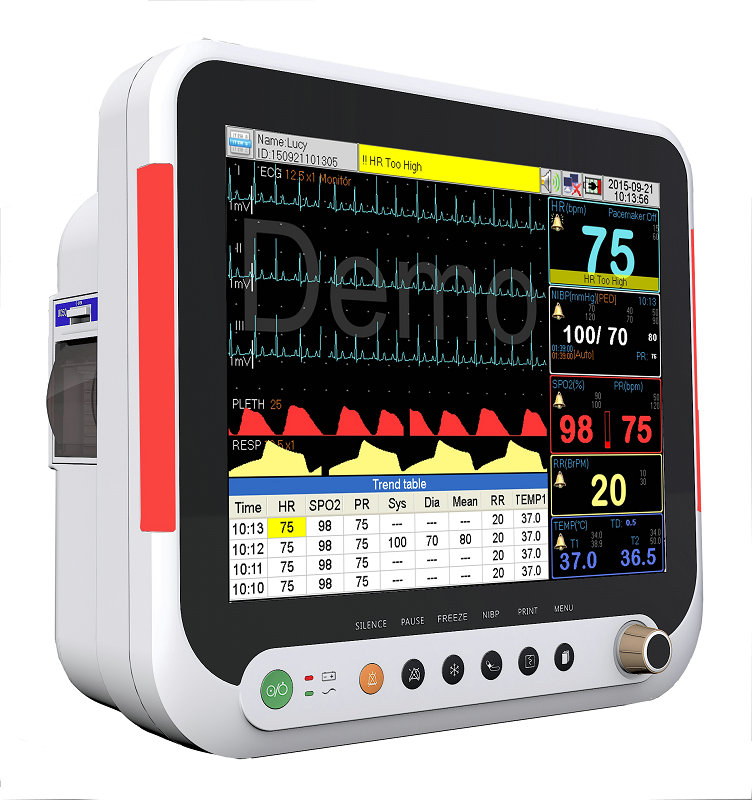

Multi-Parameter Monitor 15''
Description
Configuration

Feature


Core

· Newly advanced A10 main board with Linux OS

· Support storage of 2160 hours trend table and graph review, 2 hours waveform review (expandable to 168 hours), 2000 groups NIBP review and 2000 alarm events review



Body

· 15-inch high-brightness TFT LED

· Support display 9 ~ 13 waveforms

· Support 7(5-lead) / 12 (12-lead) channel ECG waveform display simultaneously

· Optional HDMI output



Printer

· Built-in high-speed 50mm thermal printer

 (Brand: SEIKO, Japan)



Central System

· Wired or wireless connection

· Optional Support HL7 (Health Level Seven)


Alarm

· Three-level acousto-optic alarm

· Sensor-off alarm

· Paper out alarm

· Support alarm review

· Support alarm pause



Linux OS

· Support operation with USB mouse and computer keyboard (option)

· Multi-display mode

· NIBP self-test mode

· Support medical history search by patient ID, name and mobile number

· 18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection

· Drug calculation and titration table

· Multi-language display· Online software upgrading by net / USB



Configuration
