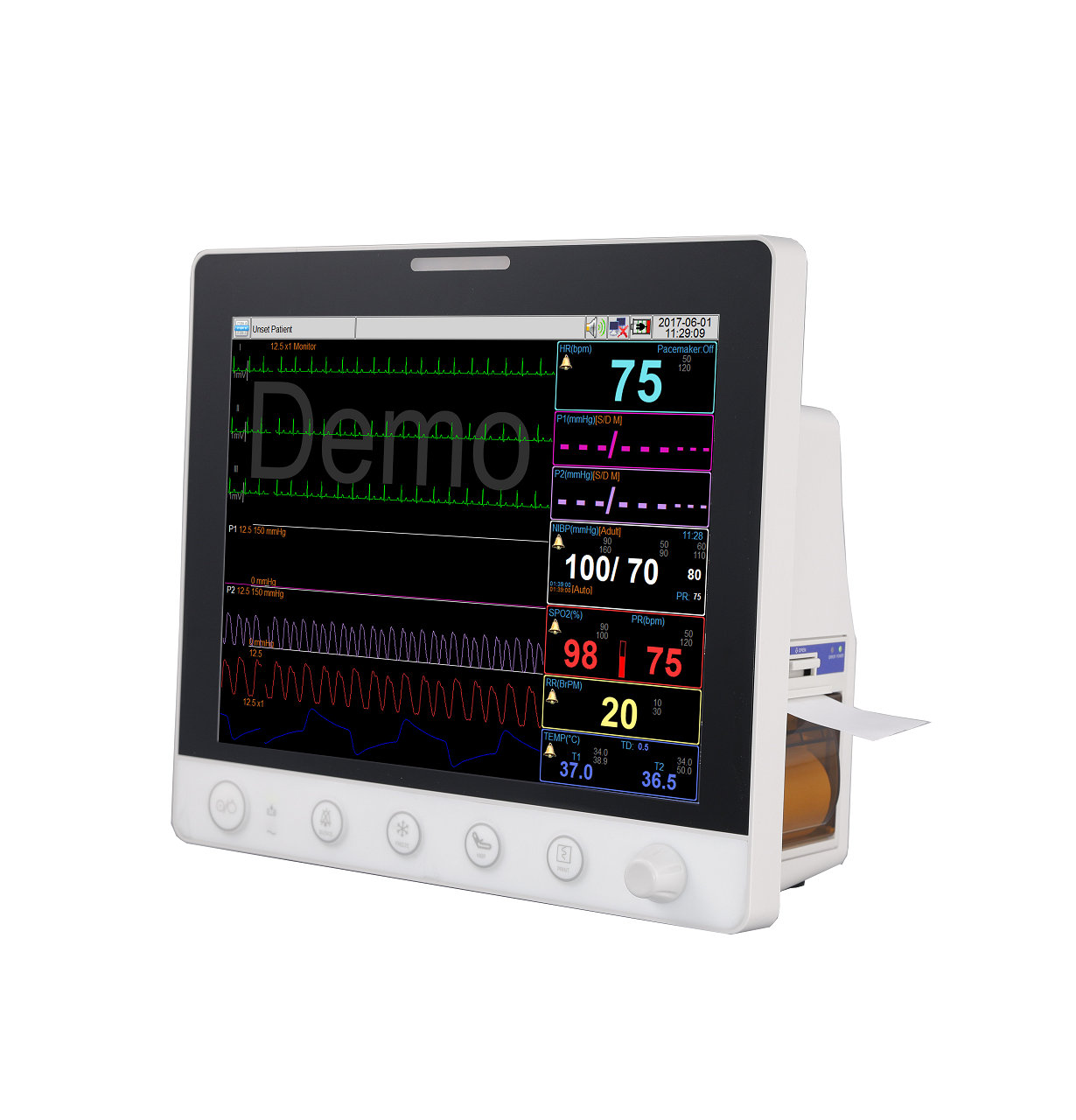

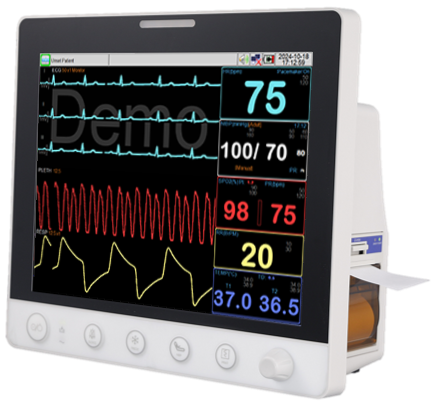

Multi-Parameter Monitor 12.1/17.3''
Description
Configuration

Features:

     Core

  •  Newly advanced A10 main board with Linux OS

  • Support storage of 2160 hours trend table and graph review, 2 hours waveform review (expandable to 168 hours), 2000 groups NIBP review and 2000 alarm events review

     Body

  • 12.1/17.3 inch high-brightness TFT LED

  • Support display 9~13 waveforms

  • Support 7 channel ECG waveform display simultaneously

  • Optional HDMI output

      Printer

  • Built-in high-speed 50mm thermal printer (Brand: SEIKO, Japan)

      Central System

  • Wired or wireless connection

  • Optional Support HL7 (Health Level Seven)

      Alarm

  • Three-level acousto-optic alarm
  • Sensor-off alarm
  • Paper out alarm
  • Support alarm review
  • Support alarm pause
      Linux OS
  • Support operation with mouse and computer keyboard (option)
  • Multi-display mode
  • NIBP self-test mode
  • Support medical history search by patient ID, name and mobile number
  • 18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
  • Drug calculation and titration table
  • Support multi-language display
  • Support online software upgrading by net/USB


Standard Configuration:

12.1-inch LED display / 17.3-inch touch screen LED display, 3/5 Lead ECG, NIBP, SpO2, Pulse Rate, Temperature, Respiration

Optional Configuration:

1/2 IBP, 12-lead ECG, Nellcor SpO2, Masimo SpO2, Suntech NIBP, Perfusion Index (PI),  EtCO2 (Mainstream / Sidestream / Microstream), Cardiac Output, Multi-gas (AG) Monitoring, Anesthesia Depth Monitoring (CSM), Laser Printer Interface, Large capacity battery, HL7 interface, Bed View

Optional Accessories:

Touch Screen (capacitive type, 12.1 inches), Printer, USB Port, Central Monitoring Station, Neo / Ped Accessories, HDMI, Wall-mounting, Trolley



Performance Specifications
